| CAPACITY | 2½” to 6” N.B. PIPE CAP. |
| TYPE | PILLER TYPE (MANUAL) |
| (MANUAL)SPCN. NO. | AMT – 1104 |

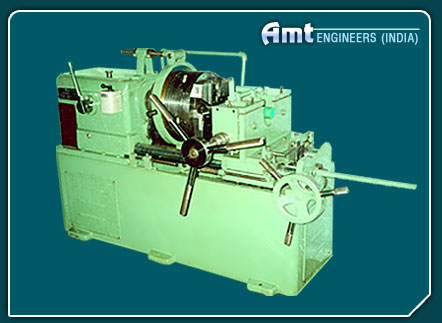

The Machine is used for Cutting External Thread on Steel Pipe by Chasing method.
HSS Tangential Chasers are used as cutters. Pipe remains stationery and Die Head rotates. BSP, BSPT, NPT, UNF, BSW,
Acme Threads can be cut on this machine depending upon the type of Chasers.
The machine mainly consists the following:-
Base
Head Stock
Saddle
Box Type Clamping Vice
Die Head
| 1” to 4” M/c | 2½” to 6” M/c | |
| Min. Dia of Pipe to be Thread | 1” N.B. Pipe | 2½" |
| Max.. Dia of Pipe to be Thread | 4” | 6” |
| Max. Length of thread to be cut | 200 mm | 200 mm |
| Number/Range of Spindle Speeds | Two Nos./ 34 & 59 RPM | Two Nos./ 34 & 59 RPM |
| Main Motor HP/RPM | 15 / 960 | 20 / 960 |
| Approx. Wt. Of the Machine. | 2200 Kgs. | 2300 kgs. |
