| CAPACITY | 1/2” to 1-1/2 ” N.B. PIPE CAP |
| TYPE | PILLER TYPE (MANUAL) |
| (MANUAL)SPCN. NO. | AMT – 1111 |

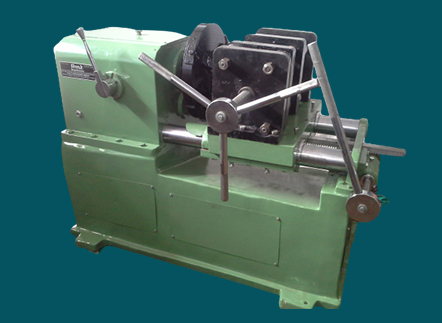

The Machine is used for the purpose of Chamfering and Deburring of the Pipe before Galvanizing and
Threading Operation. Pipe is chamfered from the Outer, Inner and Front face by Three different tools.
The Pipe remains Stationery and the Facing Head rotates. Slide Travels towards Facing Head for Chamfering manually.
The machine mainly consists the following:-
Base
Head Stock
Saddle
Clamping Vice
| Min. Dia of Pipe to be Chamfered | 1/2” N.B. Pipe |
| Max.. Dia of Pipe to be Chamfered | 1-1/2” |
| Cutting Tools Required (HSS 10% Cobalt) | 3/8” |
| Number of Spindle Speeds | Two Nos. |
| Range of Spindle Speeds | 37 to 64 RPM |
| Main Motor | 3 H.P., 1440 RPM |
| Approx. Wt. Of the Machine. | 750 Kgs. |
