| CAPACITY | 1/2” to 2-1/2 ” N.B. PIPE CAP |
| TYPE | PILLAR TYPE |
| (MANUAL)SPCN. NO. | AMT – 1104 |

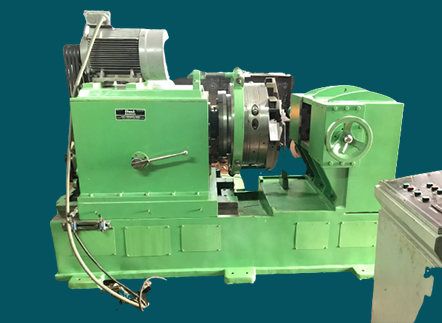

The Machine is used for Cutting External Thread on Steel Pipe by Chasing method. HSS Tangential Chasers are used as cutters. Pipe remains stationery and Die Head rotates. BSP, BSPT, NPT, UNF, BSW, Acme Threads can be cut on this machine depending upon the type of Chasers. The machine mainly consists the following:-
Base, - Head Stock, - Saddle, - piller Type Clamping Vice, - Die Head.
| Min. Dia of Pipe to be Thread | 1/2” N.B. Pipe |
| Max.. Dia of Pipe to be Thread | 2-1/2” |
| Max. Length of thread to be cut | 200 mm |
| Number/Range of Spindle Speeds | Two Nos. 34 & 59 RPM |
| Main Motor HP/RPM | 10/960 RPM |
| Approx. Wt. Of the Machine. | 1200 Kgs. |
