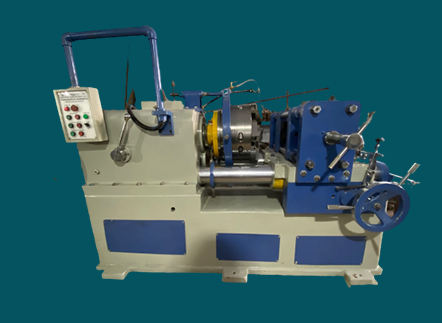

PIPE THREADING MACHINE (8 Inches)

CAPACITY 2-1/2” to 6 ” N.B. PIPE CAP 1"to4"
TYPE PILLAR TYPE
(MANUAL)SPCN. NO. AMT – 1104

The Machine is used for Cutting External Thread on Steel Pipe by Chasing method. HSS Tangential Chasers are used as cutters. Pipe remains stationery and Die Head rotates. BSP, BSPT, NPT, UNF, BSW, Acme Threads can be cut on this machine depending upon the type of Chasers. The machine mainly consists the following:-


Base, Head Stock, Saddle, piller Type Clamping Vice, Die Head,

Min. Dia of Pipe to be Thread 2-1/2" & N.B. Pipe
Max.. Dia of Pipe to be Thread 6"
Max. Length of thread to be cut 200 mm
Number/Range of Spindle Speeds Two Nos. 34 & 59 RPM
Main Motor HP/RPM 20/960 RPM
Approx. Wt. Of the Machine. 2300 Kgs.
